Steel Belt Reinforced HDPE Spiral Corrugated Pipe

Steel Belt Reinforced HDPE Spiral Corrugated Pipe

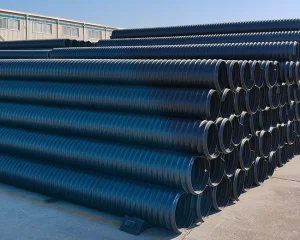

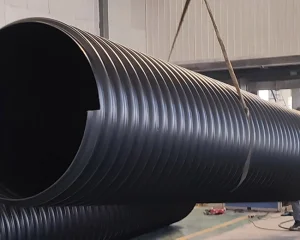

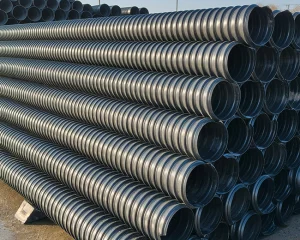

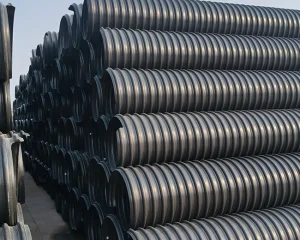

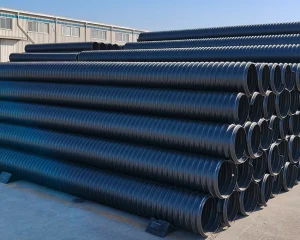

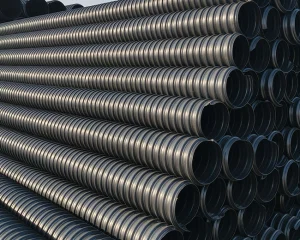

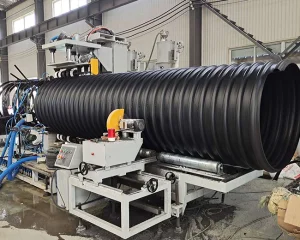

Steel Belt Reinforced HDPE Spiral Corrugated Pipe (hereinafter referred to as "steel-reinforced pipe") is a new type of composite structured-wall pipe manufactured using a spiral winding process, featuring a high-density polyethylene (HDPE) matrix and a galvanized steel strip reinforcement layer. Combining the corrosion resistance and flexibility of HDPE with the high strength and impact resistance of steel, these pipes are widely used in municipal drainage, industrial sewage disposal, agricultural irrigation, highway culverts, and underground utility tunnels. Suitable for various operating conditions—including gravity flow and low-pressure conveyance—they serve as an ideal alternative to traditional metal and concrete pipes.

(0) Reviews

INQUIRE NOW ADD TO CART

Product Overview

Core Product Advantages

High Strength and Rigidity: The steel strip reinforcement layer significantly enhances the pipe's ring stiffness, enabling it to withstand substantial soil pressure and external loads; it resists deformation and damage, making it suitable for deep-burial applications.
Corrosion and Aging Resistance: The HDPE matrix offers excellent resistance to acids, alkalis, salts, and organic solvents, effectively withstanding corrosive agents found in industrial and municipal wastewater; UV stabilizers prevent chalking and aging during outdoor use, ensuring suitability for diverse climatic conditions.
Flexibility and Ease of Installation: The pipe’s excellent flexibility accommodates minor ground settlement and terrain irregularities; it eliminates the need for complex corner treatments and allows for convenient cutting and joining, thereby significantly reducing construction costs and timelines.
Eco-friendly, Non-toxic, and Pollution-free: Manufactured from virgin HDPE raw materials, the product is odorless and non-toxic; it complies with drinking water hygiene standards (NSF/ANSI 61 certified) and is suitable for potable water transport and food-grade industrial piping.
Superior Sealing and Leak Prevention: Utilizing either rubber-ring socket joints or heat-fusion welding, the connections offer excellent sealing performance, effectively preventing leaks and avoiding soil or groundwater contamination.
Cost-effectiveness and Longevity: Lightweight and easy to transport, the product ensures high installation efficiency and low maintenance costs; with a service life of up to 50 years, it offers far superior overall cost-performance compared to traditional piping.

Product Specifications & Parameters

Key Specifications

Nominal inner diameter(mm) DN/ID	Minimum average inner diameter(mm)	Minimum inner wall thickness(mm)	Minimum laminated wall thickness(mm)	Maximum pitch (mm)	Minimum steel strip thickness(mm)	Minimum anti-corrosion coating thickness(mm)
Nominal inner diameter(mm) DN/ID	Minimum average inner diameter(mm)	Minimum inner wall thickness(mm)	Minimum laminated wall thickness(mm)	Maximum pitch (mm)	Minimum steel strip thickness(mm)	Minimum anti-corrosion coating thickness(mm)
300	294	2.5	4	75	0.4	2.2
400	392	3	4.5	85	0.4	2.2
500	490	3.5	5	100	0.5	2.5
600	588	4	6	110	0.5	2.5
700	685	4	6	115	0.5	2.5
800	785	4.5	7.5	120	0.7	3
900	885	5	7.5	135	0.7	3
1000	985	5	8	150	0.7	3
1100	1085	5	8	165	0.7	3
1200	1185	5	8	180	0.7	3

Note: Products with special specifications, ring stiffness, and lengths can be customized according to customer requirements; parameters for export products can be adjusted to meet the standards of the respective regions.

Applicable Standards

Environmental Parameters

Operating temperature: -20°C to 60°C (low-temperature resistant formulations can be customized for special low-temperature conditions, down to -40°C).
Operating pressure: Gravity flow (non-pressurized).
Burial depth: ≤10m (adjustable based on ring stiffness class; special depths require specific engineering design).
Applicable media: Municipal sewage, industrial wastewater, rainwater, potable water, agricultural irrigation water, mildly corrosive chemical liquids, etc.
